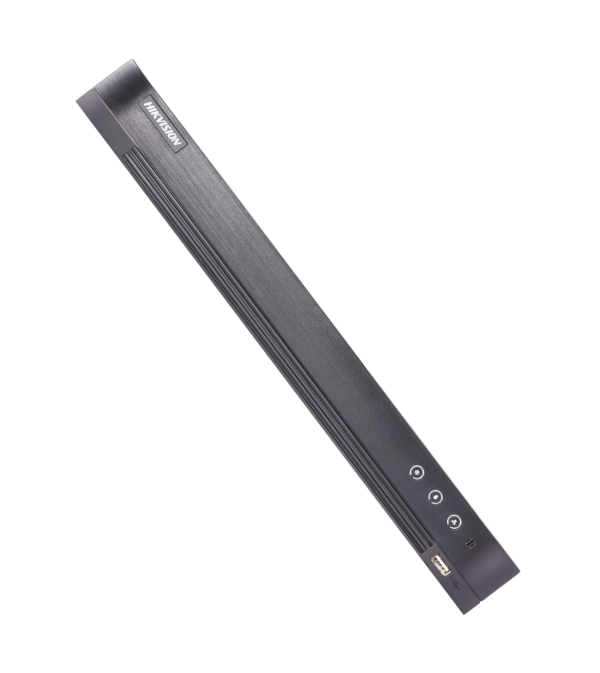

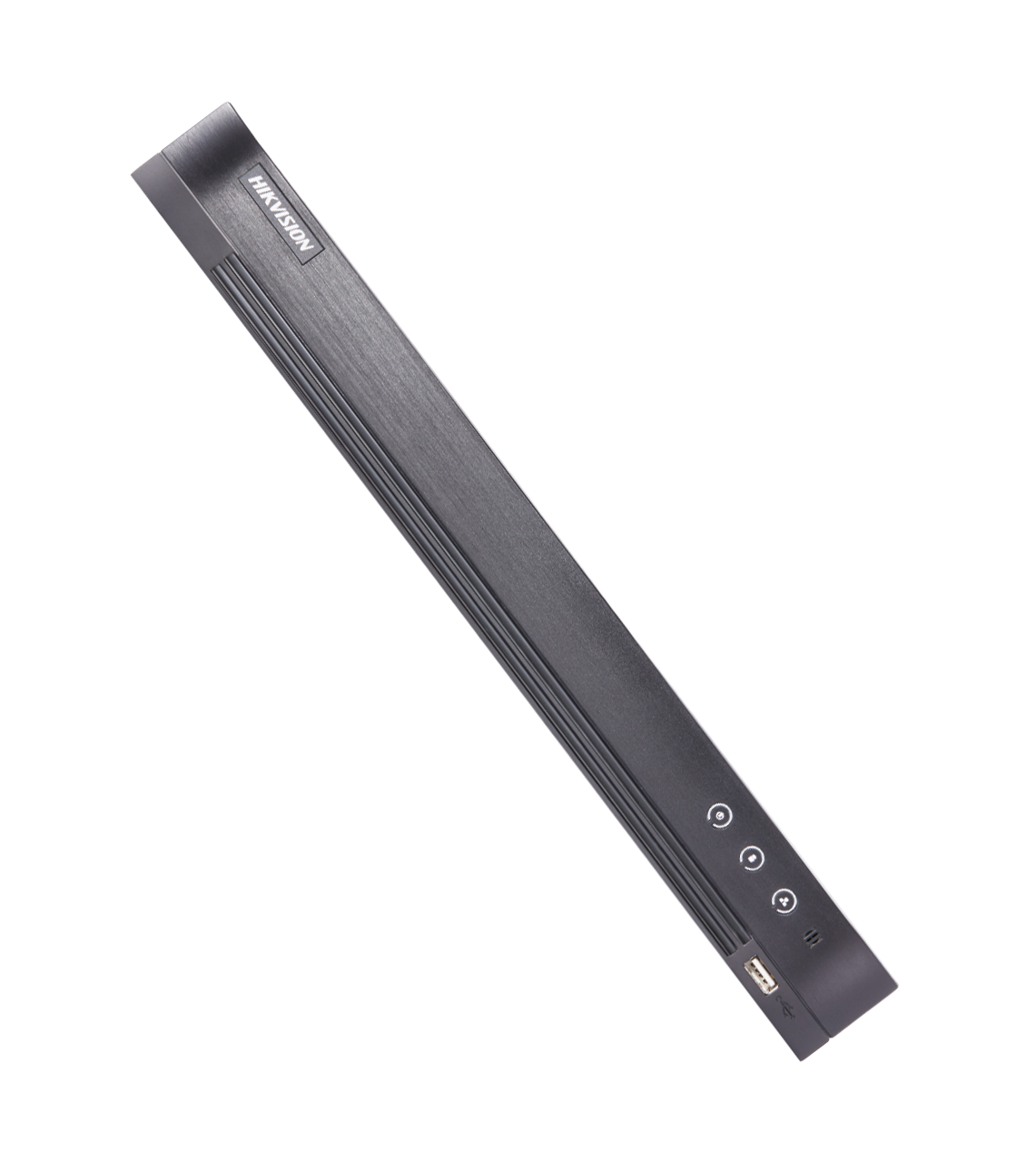

DS‐7216HUHI‐K2(S

16-ch 5 MP 1U H.265 DVR
  • 16 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 32 network cameras can be connected
Categories: ,
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate
32 Kbps to 10 Mbps
Dual Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bit Rate
64 Kbps
IP Video Input
16-ch (up to 32-ch) Up to 8 MP resolution Support
H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
Audio Input
4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback
16-ch
HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
VGA/HDMI Output
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Remote Connections
128
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA
2 SATA interfaces
Capacity
Up to 10 TB capacity for each disk
Alarm In/Out
16/4
Serial Interface
RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
Power Supply
12 VDC
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimensions (W × D × H)
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weights (Without HDD)
≤ 2 kg (4.4 lb)
Consumption (Without HDD)
≤ 25 W
