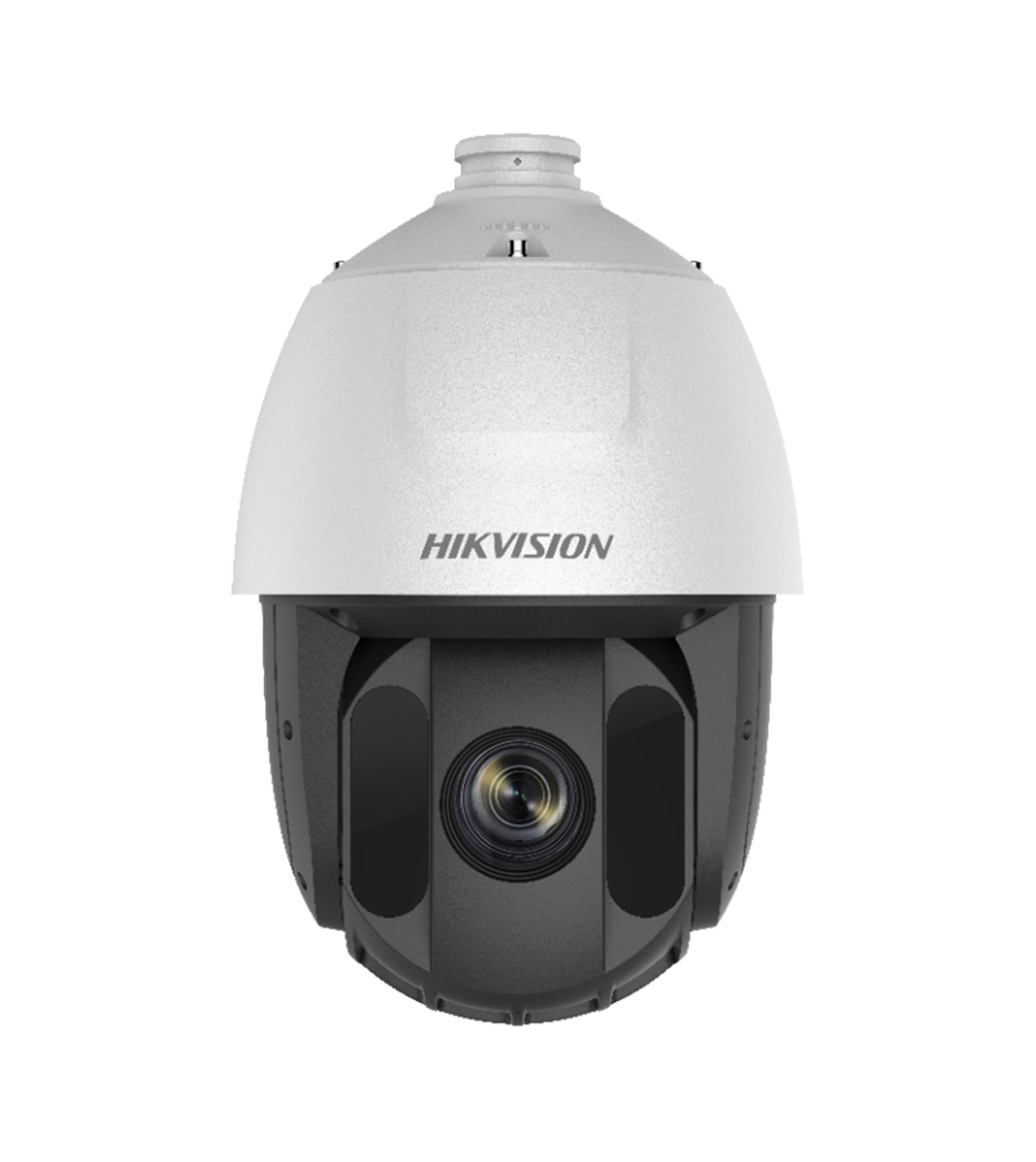

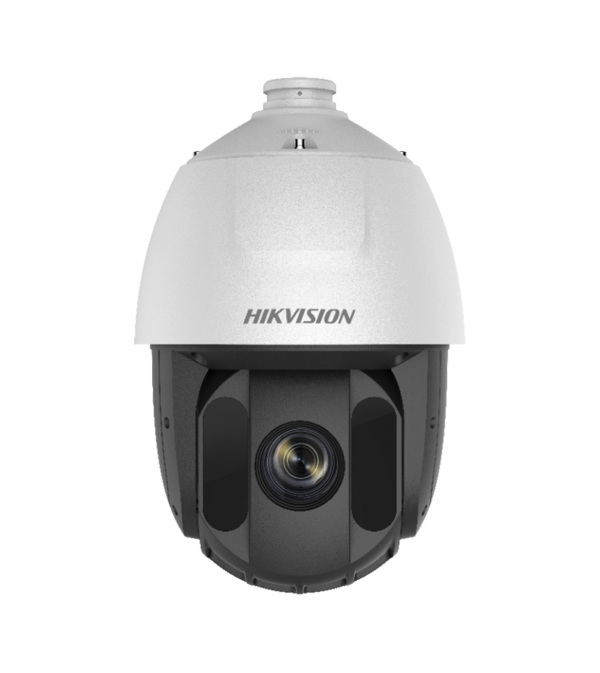

DS-2AE5232TI-A

5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome
  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 32x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 150m IR range ensures safety at night
  • Water and dust resistant (IP66)
FOV
Horizontal field of view: 55.6° to 2.04° (wide to tele),Vertical field of view: 32.4° to 1.14° (wide to tele),Diagonal field of view:63° to 2.34° (wide to tele)
Zoom Speed
Approx. 5.6 s (optical, wide to tele)
Working Distance
10 mm to 1500 mm (wide to tele)
Aperture Range
F 1.2 to F 4.4
Focal Length
4.8 mm to 153 mm, 32× optical
Max. Resolution
1920 × 1080
Frame Rate
50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
AGC
AUTO/MANUAL
DNR
3D DNR
Regional Focus
Yes
Image Sensor
1/2.8" progressive scan CMOS
Model
DS-2AE5232TI-A(C)
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON),B/W: 0.001 Lux @(F1.2, AGC ON),0 lux with IR
White Balance
AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
Shutter Time
PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
Day & Night
IR cut filter
EIS
Yes
Digital Zoom
16×
Privacy Mask
8 programmable privacy masks
Focus Mode
Auto/Semiauto/Manual
WDR
≥ 120 dB
BLC
Yes
HLC
Yes
Power-off Memory
Yes
Movement Range (Pan)
360° endless
Pan Speed
Pan manual speed: 0.1° to 120°/s,Pan preset speed: 120°/s
Movement Range (Tilt)
-15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
Proportional Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Patrol Scan
10 patrols, up to 32 presets per patrol
Pattern Scan
5 patterns, with the total recording time no less than 10 minutes
