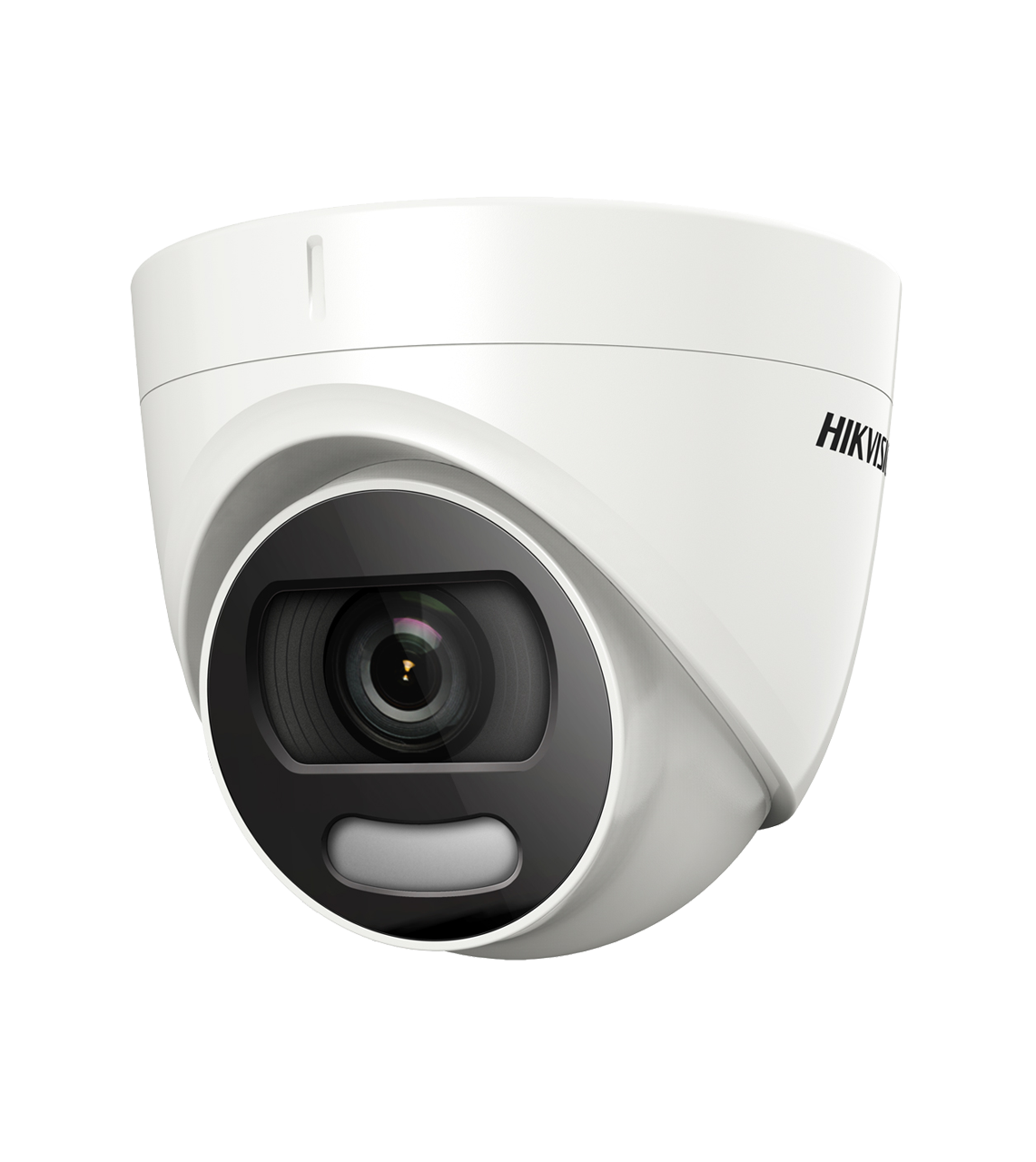

DS-2CE72HFT-F28

5 MP ColorVu Fixed Turret Camera
  • 5 MP full time color turret camera
  • 24/7 full color imaging
  • 2.8 mm fixed focal lens
  • Warm supplemental light with 20 m range
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Image Sensor
5 MP CMOS
Signal System
PAL/NTSC
Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
Resolution
2560 (H) × 1944 (V)
Min. illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens
2.8 mm fixed lens
Horizontal Field of View
2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
Lens Mount
M16
Strobe Light Alarm
Yes
Day & Night
Color
WDR (Wide Dynamic Range)
≥130 dB
Angle Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Functions
Brightness, Sharpness, Mirror, Smart Light
White Light
AUTO/OFF
Image Mode
STD/HIGH-SAT
AGC
Support
Day/Night Mode
Color
White Balance
ATW/MANUAL
HLC
Yes
BLC (Backlight Compensation)
Yes
Language
English
Video Output
Switchable TVI/AHD/CVI/CVBS
Weight
Approx. 350 g ( 0.77 lb.)
Operating Condition
-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption
Max. 3.5 W
Protection Level
IP67
Material
Main Body: Metal Enclosure: Plastic
Communication
HIKVISION-C
White Light Range
Up to 20m
Dimensions
Φ 109.82 mm × 85.56 mm (4.32" × 3.37")
