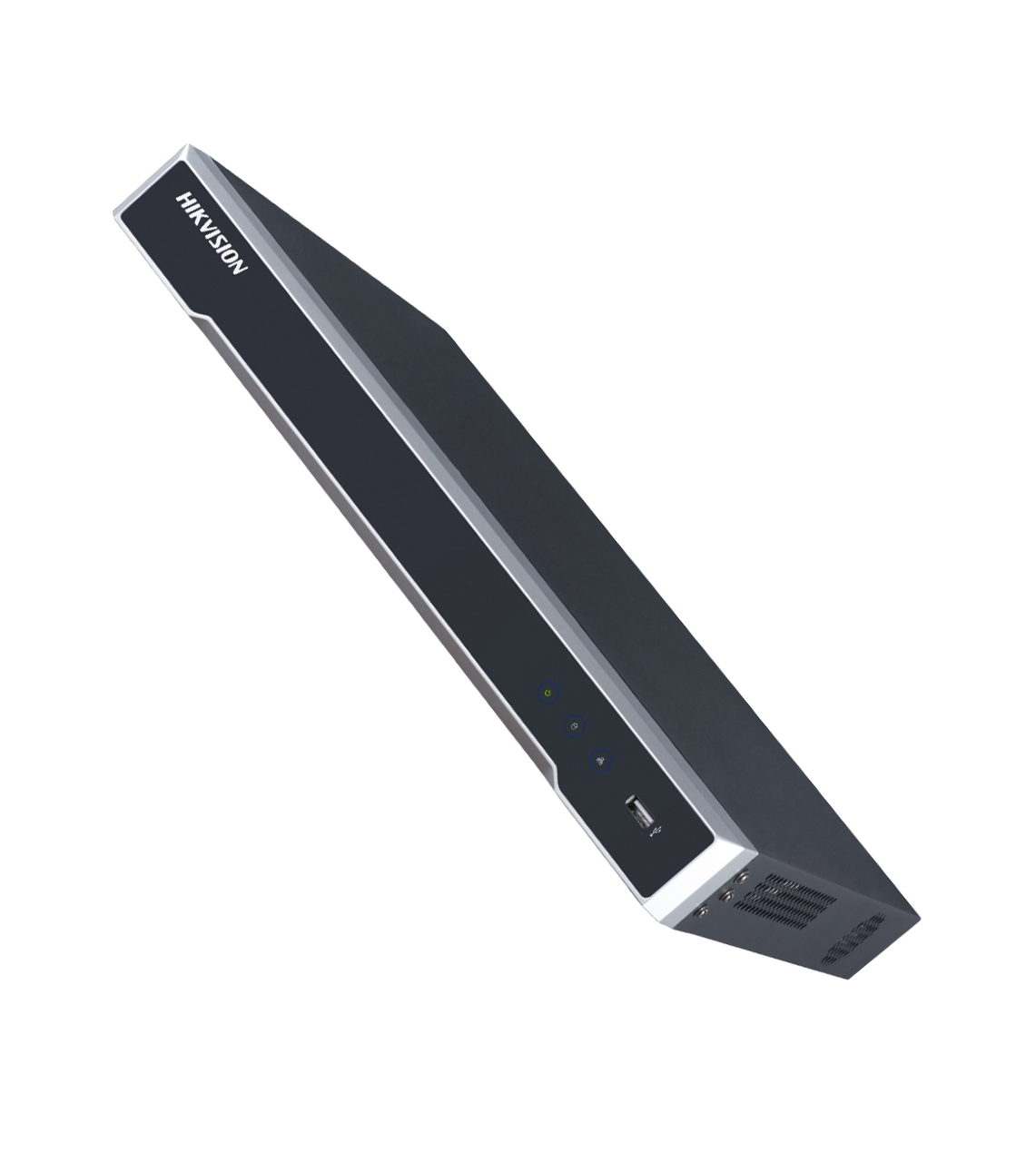

DS-7608NI-K2/8P

8-ch 1U 8 PoE 4K NVR
  • Up to 8 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Compatible with third-party network cameras
  • Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
  • Supports some special cameras, including people counting and ANPR (automatic number plate recognition) cameras
  • Channel-zero function ensures smooth remote live view and playback in low bandwidth environments
Categories: ,
IP Video Input
8-ch
Incoming/Outgoing Bandwidth
80 Mbps ,160 Mbps
HDMI Output
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Input
1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding Format
H.265/H.265+/H.264/H.264+/MPEG4
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
8-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Network Protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 120 W
Supported Standard
IEEE 802.3 af/at
SATA
2 SATA interfaces
Capacity
Up to 6 TB capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
4/1
Power Supply
100 to 240 VAC,≤ 180 W
Weight (Without Hard Disk)
≤ 3 kg (6.6 lb)
Consumption (Without HDD)
≤ 15 W (without enabling PoE)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimensions (W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
