Model

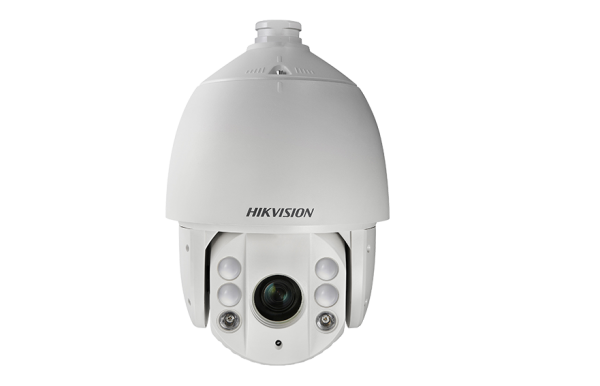

DS-2AF7230TI-AW(B)
Image Sensor
1/2.8" progressive scan CMOS
Max. Image Resolution
1920 × 1080
Frame Rate
50Hz: 25fps @ (1920 × 1080)
60Hz: 30fps @ (1920 × 1080)
60Hz: 30fps @ (1920 × 1080)
Min. Illumination
Color: 0.05Lux @ (F1.6, AGC ON)
B/W: 0.01Lux @ (F1.6, AGC ON)
0 lux with IR
B/W: 0.01Lux @ (F1.6, AGC ON)
0 lux with IR
White Balance
AUTO/HAUTO/ATW/INDOOR/OUTDOOR/SELF DEFINE
AGC
AUTO/MANUAL
S/N Ratio
≥ 52 dB
DNR
3D DNR
WDR
True WDR
Shutter Time
PAL: 1/1 to 1/10,000 s
NTSC: 1/1 to 1/10,000 s
NTSC: 1/1 to 1/10,000 s
Day & Night
IR cut filter
Privacy Mask
4 privacy masks
Focus Mode
Auto/Semiauto/Manual
Focal Length
4.5 mm to 135 mm, 30× Optical
Aperture Range
F 1.6 to F 4.4
Angle of View
65.1° to 2.3° (Wide to Tele)
Min. Working Distance
10 mm to 1500 mm (Wide to Tele)
Zoom Speed
Approx. 3.0 s (Optical, Wide to Tele)
Pan Range
360° endless
Pan Speed
Pan manual speed: 0.1° to 180°/s; Pan preset speed: 180°/s
Tilt Range
-15° to 90° (Auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 120°/s; Tilt preset speed: 120°/s
Proportional Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Patrol
10 patrols, up to 32 presets per patrol
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Frame Scan/Random Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Pattern
5 patterns, with the total recording time not less than 10 minutes
Power-off Memory
Support
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display
ON/OFF
Preset Freezing
Support
Smart IR
Automatically adjusted, depending on the zoom ratio
IR Distance
200 m
UTC
function HIKVISION_C
*UTC controller is needed, if DVR don’t support UTC function
*UTC controller is needed, if DVR don’t support UTC function
Turbo HD
Output 1 turbo 1080p output, NTSC (or PAL) composite, BNC
CVBS Output
1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
Alarm Input & Output
7-ch alarm input and 2-ch alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Weight (approx.)
4.5 kg (9.92 lb.)
Menu Language
English, Chinese
Power
24 VAC
Max.: 45 W (IR: 15 W; Heater: 5 W)
Max.: 45 W (IR: 15 W; Heater: 5 W)
Working Temperature
Outdoor: -30° C to 65° C (-22° F to 149° F)
Working Humidity
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 6,000 V lightning protection, surge protection and voltage transient protection
TVS 6,000 V lightning protection, surge protection and voltage transient protection
Protection Level
IP66 standard (outdoor dome)
TVS 6,000 V lightning protection, surge protection and voltage transient protection
TVS 6,000 V lightning protection, surge protection and voltage transient protection
Mounting
Various mounting modes optional
Dimension
Φ 220 mm × 353.4 mm (Φ 8.66" ×13.91")
